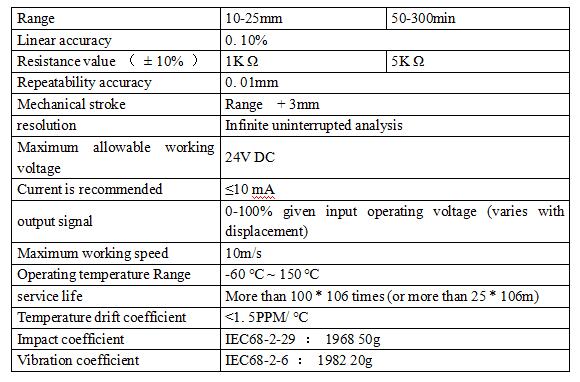

Performance parameters of displacement sensor

     Model: KTM

     Range: 10-300mm

     Resistance: 5K (or 1K)

     Linear accuracy: ± 0.1%

     Repeatability accuracy: 0.01mm

     Resolution: infinite analysis

     Maximum allowable working voltage: 24V

     Recommended current: ≤ 10mA

     Output signal: voltage signal

     Maximum working speed: 10M / S

     Service temperature: - 60 ℃ to + 150 ℃

     Service life: > 100 million times

     Temperature drift coefficient: < 1.5ppm / ℃

     Impact coefficient: iec68-2-29: 1968 50g

     Vibration coefficient: iec68-2-6:1982 20g

Application area:

    Aircraft steering

    Ship steering

    Shoe machine (front and back)

    Injection molding needle control

    Printing machinery

    Paper packaging machinery
