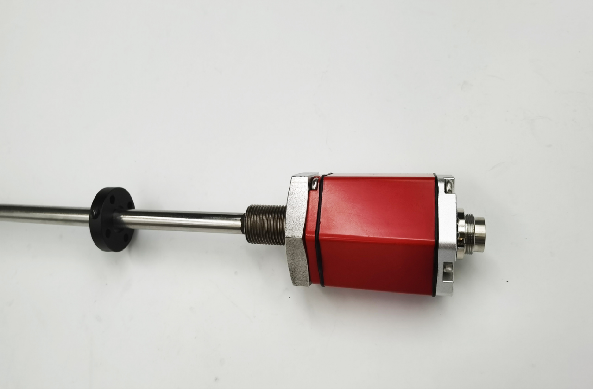

Input

Measurement data location

Measurement range: 50mm-7650mm

Output

Voltage：0～10Vdc，10~0Vdc，0～5Vdc，5～0Vdc

(controller minimum load: ＞5k Ohms）

Electric current： 4～20mA，20～4mA，0～20mA，20～0mA

(minimum / heavy load 0 / 500 Ohms)

Accuracy

Resolution 16 bit D / A, up to 0.5um

Nonlinearity < 0.02% of full scale (minimum 100um)

Repeatability < 0.002% of full scale or the same as resolution

Update time 0.5ms (range ≤ 1200mm)

1.0ms (range ≤ 2400mm)

2.0ms (range ≤ 4800mm)

5.0ms (range ≤ 7650mm)

Working conditions

Magnetic ring speed: arbitrary

Working temperature ：- 40 ～ 85 ℃

Humidity / dew point humidity ：90%, no condensation

Temperature coefficient<30ppm / ℃

Protection grade：IP65 RP aluminum forming outer pipe

IP67 RH pressure outer tube

IP68 RH pressure resistant outer pipe (waterproof type)

Structure and materials

RP series:     Electronic warehouse： Aluminum alloy profiles

Measuring rod： Aluminum alloy

Magnet： Slider magnet or floating magnet

RH series:     Electronic warehouse：Aluminium alloy profile

Measuring rod：stainless steel 304 or 316L

Magnetic ring：Standard magnetic ring or open magnetic ring

Outer pipe pressure40MPa (continuous)

60MPa (peak value)

Install

Installation direction：arbitrary direction

Thread form： metric m18 × 1.5 ，M20 × 1.5

British system 3 / 4 "- 16UNF-3A

Electrical connection

Outlet type： waterproof connector or aviation plug

Input voltage： 24 VDC (- 15 ~ + 20%)

polarity protection Maximum ：- 30VDC

Overpressure protection： Maximum36VDC

Working current ＜70mA (varies with measuring range)
