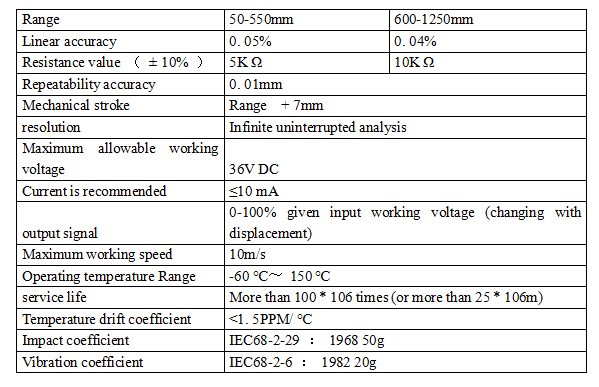

Performance parameters of displacement sensor：

      Model: KTC

      Range: 50-1250mm

      Resistance: 5K (or 10K)

      Linear accuracy: ± 0.05%

      Repeatability accuracy: 0.01mm

      Resolution: infinite analysis

      Maximum allowable working voltage: 36V

      Recommended current: ≤ 10mA

      Output signal: voltage signal

      Maximum working speed: 10M / S

      Service temperature: - 60 ℃ to + 150 ℃

      Service life: > 100 million times

      Temperature drift coefficient: < 1.5ppm / ℃

      Impact coefficient: iec68-2-29: 1968 50g

      Vibration coefficient: iec68-2-6:1982 20g

Application area:

     Injection molding machine

     Die casting machine

     Rubber machine

     Shoe machine

     EVA injection machine

     Hollow bottle blowing machine

     Woodworking machinery

     Hydraulic machinery
